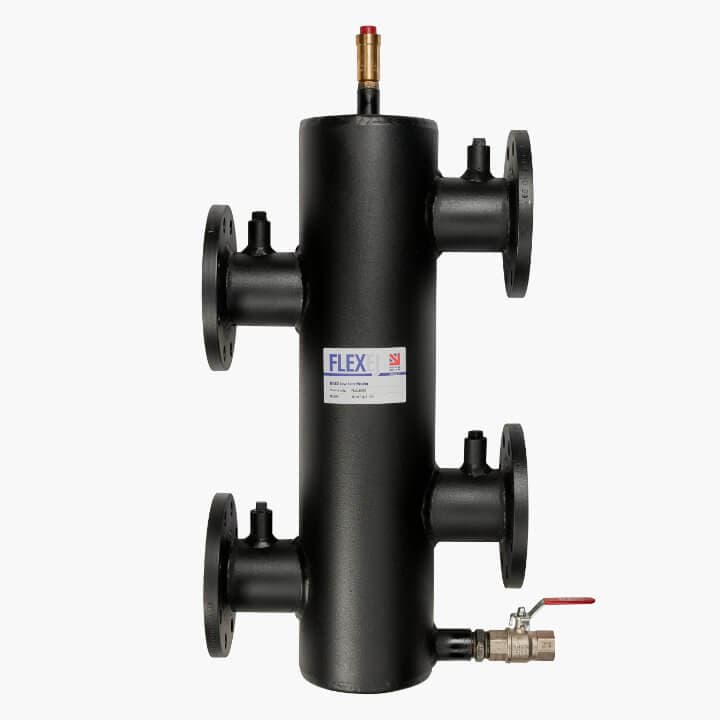

FlexEJ DN80 HP low-loss header FEJLLH080

FlexEJ DN80 HP Low Loss Header 440 kW

Brand: FlexEJ
SKU: FEJLLH080
Condition: New
Sold by: Hearthwell

Pallet freight on UK mainland (2–3 days).

£418.53

In stock · ready to dispatch

UK Standard Delivery: Free. Dispatched in 1–2 working days; typically arrives in 2–4 working days. Shipping · 14-day cancellation

UK-made FlexEJ high-power low-loss header for hydraulic separation on larger HVAC and heat-pump circuits. DN80 (3 in) PN16 flanged carbon-steel body, 440 kW at 20 °C ΔT on boilers or 110 kW at 5 °C ΔT on heat pumps. Flamco Flexvent AAV and DN25 drain valve fitted. 10 barg at 110 °C. Height 780 mm, installation width 380 mm, body DN150, dry weight 33 kg. Matching 3-port horizontal manifolds are available separately. Not for drinking water. Sold and shipped by Hearthwell in the UK.

Features

DN80 PN16 flanged low-loss header, UK-made
110 kW heat-pump rating at 5 °C ΔT (440 kW boiler at 20 °C ΔT)
Flamco Flexvent AAV and DN25 drain valve included
10 barg at 110 °C, painted carbon steel
Larger-capacity alternative to the Grant 70 kW kit

Specifications

SKU	FEJLLH080
Brand	FlexEJ
Condition	New
Pipe size	DN80 (3 in) PN16 flange
Heat-pump rating	110 kW @ 5 °C ΔT
Boiler rating	440 kW @ 20 °C ΔT
Pressure	10 barg @ 110 °C
Weight / height	33 kg / 780 mm
